iFixit’s Magic Leap teardown features super precise engineering and tiny projectors
Augmented reality company Magic Leap released a “creator edition” of its ambitious, hugely hyped headset earlier this month. Today, iFixit published its teardown of the device, featuring a concrete look at technology that Magic Leap discusses in very abstract terms.

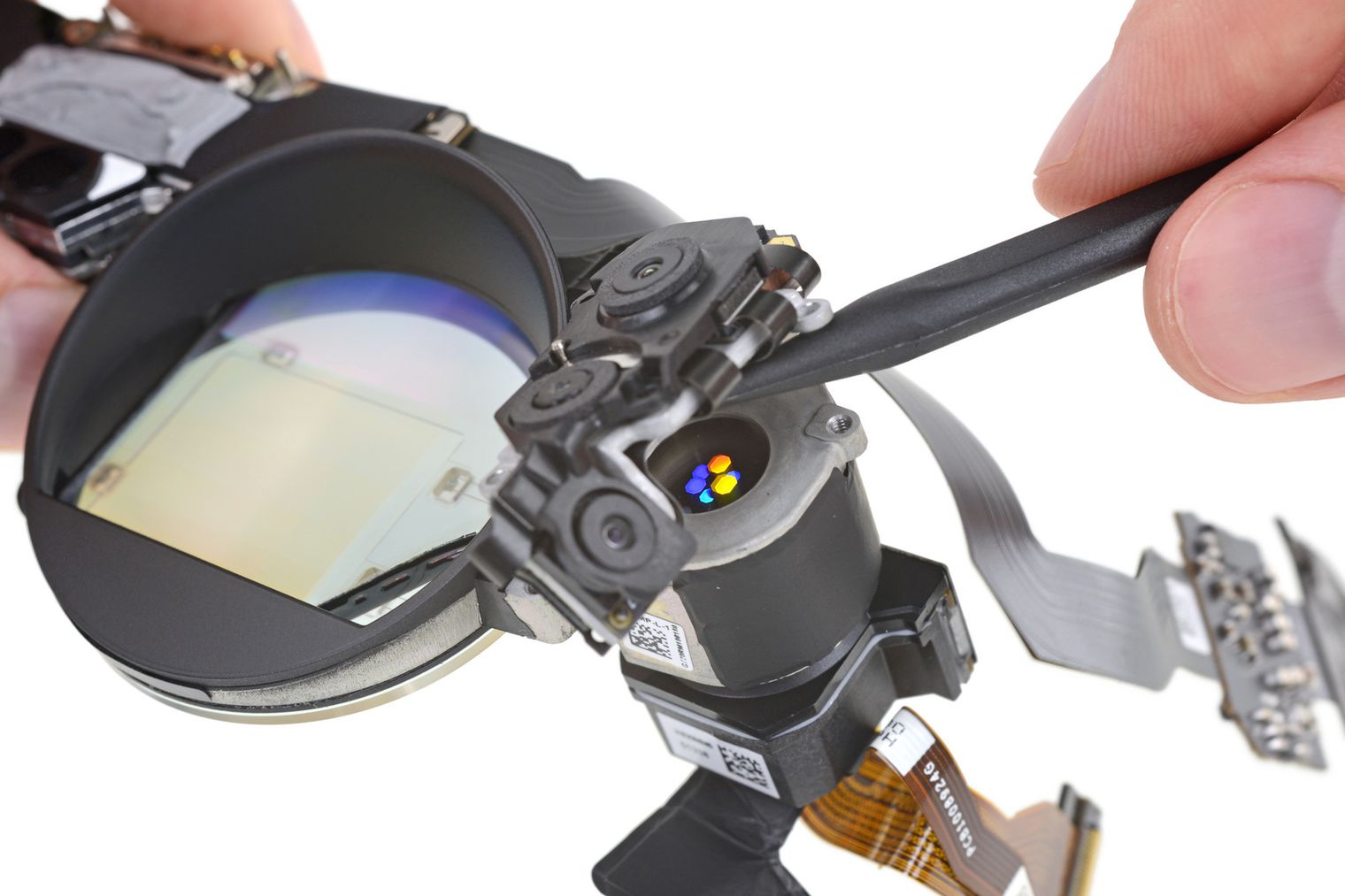

As we’ve previously discussed, the Magic Leap One Creator Edition uses a combination of waveguide lenses and tracking cameras to project hologram-like objects into your real environment. iFixit actually goes to the trouble (and it does have a lot of trouble with parts of this hard-to-repair device) of pulling out the multilayered waveguide and the little projector that shoots light through it. It also spells out the details of things like the controller’s magnetic tracking, which isn’t revelatory but also isn’t something Magic Leap spends a lot of time explaining.
The teardown reflects the basic impression we’ve had of Magic Leap: it’s an interesting device with some serious compromises.
See the full story here: https://www.theverge.com/2018/8/23/17772632/ifixit-magic-leap-one-creator-edition-teardown-waveguide
See the actual teardown here: https://www.ifixit.com/Teardown/Magic+Leap+One+Teardown/112245
