VIOSO Brings World’s Largest Dome Projection to the 2020 Super Bowl
System design consultant Lumen & Forge was chosen by Broadwell Airdomes USA, on behalf of show organiser AG Entertainment, to help create an unforgettable experience for the over 60,000 people in attendance.

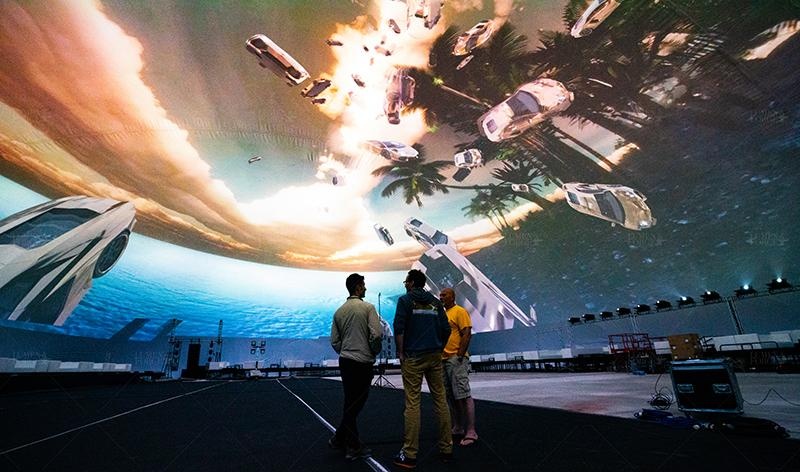

With the assistance of German projection specialist VIOSO, Lumen & Forge installed an immense dome measuring 68.58m wide by 53m high (225ft by 175ft), making it the largest projection ever made inside this kind of structure.
While many industry standard projection domes have a hemispherical shape, the one implemented for this project boasted a uniquely oval, or ‘pill’, shape. Created by Broadwell Airdomes USA, the colossal size of structure was decided due to the use of the dome, which would host concerts and parties within: The pill shape would also allow for a higher capacity of visitors, while creating optimal placement for the 24 Digital Projection M-Vision Laser 18K projectors installed inside, in order to project the content on the inside without any interference or view restriction.
After designing the dome in a 3D space, the teams were able to develop content that was placed into VR for testing. Using this method, the 16x9 content was modified to perfectly fit the shape of the dome, altering the calibrations to fit the lens of the camera.
